写一个Android第一代壳

前言

在讲解之前，需要了解加壳之前，必须先了解Android动态加载Apk的原理及机制，这次基于这样的机制，实现加壳。

加壳实例

被加壳的APP

随便写个demo的App来，至于为什么这么写，可以回顾一些Android动态加载Apk的原理

package com.qqq.myapp;

import android.app.Activity;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity implements View.OnClickListener{

    private Activity that;
    public MainActivity()
    {
        super();
    }
    public MainActivity(Activity content)
    {
        super();
        that = content;
    }
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        if (that != null)
        {
            LinearLayout lv = new LinearLayout(that);
            that.setContentView(lv);
            Button btn = new Button(that);
            btn.setText("点我");
            lv.addView(btn);
            btn.setOnClickListener(this);
        }else {
            super.onCreate(savedInstanceState);
            setContentView(R.layout.activity_main);
            that = this;
        }
    }
    private void getMessage(String str)
    {

        Toast.makeText(that,str,Toast.LENGTH_SHORT).show();
    }

    @Override
    public void onClick(View v) {

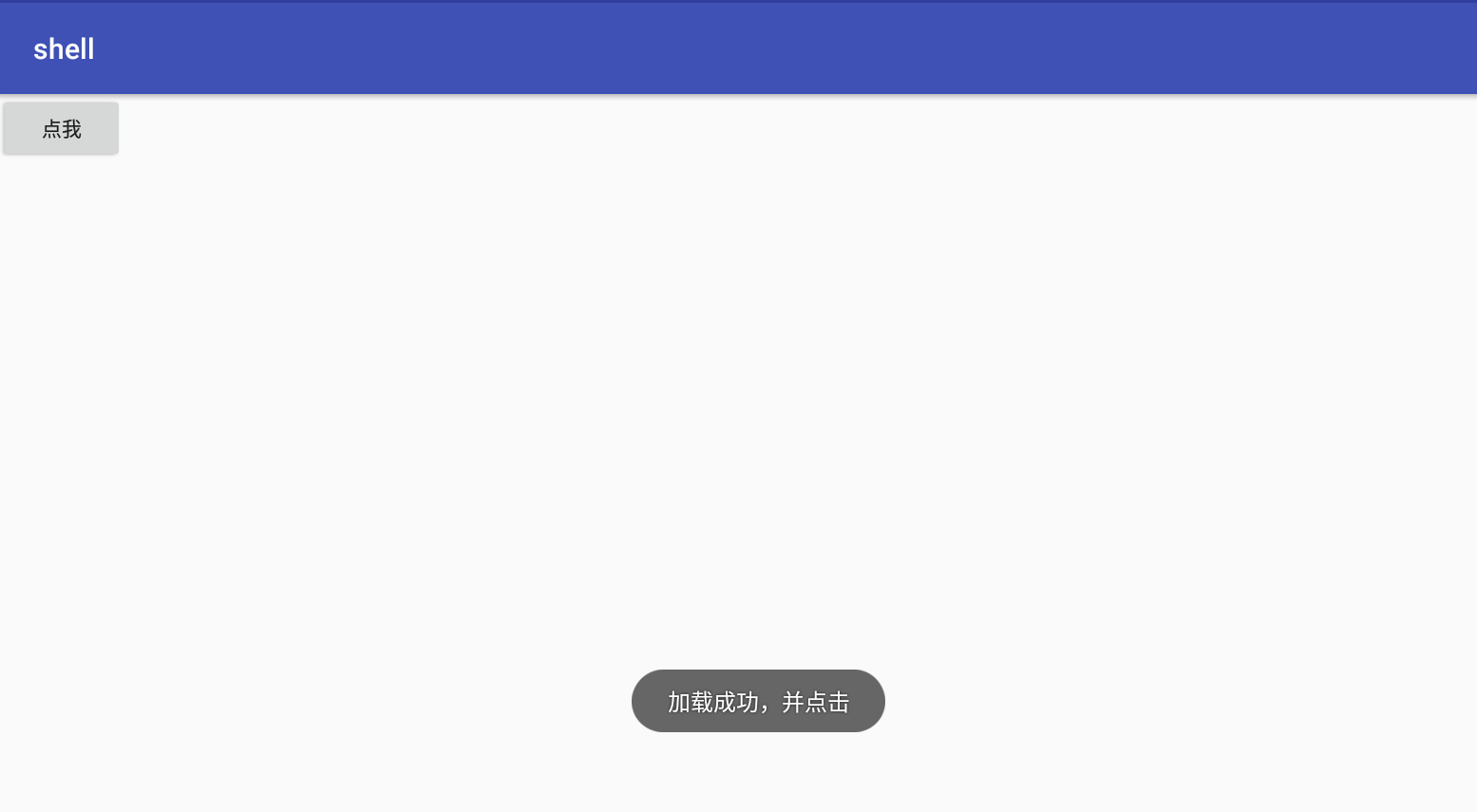

        getMessage("加载成功，并点击");
    }
}

壳APP

壳App执行流程就是将被合并的apk数据从classes.dex中提取出来，然后解密，最后加载Activity

package com.qqq.test.shell;

import android.app.Application;
import android.content.Context;

import java.io.BufferedInputStream;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.DataInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.zip.ZipEntry;
import java.util.zip.ZipInputStream;

/**
 * Created by admin on 2022/7/6.
 */

public class App extends Application{
    String odexPath,apkFileName;
    @Override
    protected void attachBaseContext(Context base) {
        super.attachBaseContext(base);
        try
        {
            File odex = this.getDir("odex", MODE_PRIVATE);
            odexPath = odex.getAbsolutePath();
            apkFileName = odexPath + "/myapp.apk";
            File dexFile = new File(apkFileName);
            if (!dexFile.exists())
            {
                dexFile.createNewFile();
                byte[] dexdata = readDexFromApk();
                splitApk(dexdata);
            }
        }catch (Exception e)
        {

        }

    }


    private void splitApk(byte[] dexdata) throws IOException{
        int dexlen = dexdata.length;
        byte[] dexlendata = new byte[4];
        System.arraycopy(dexdata,dexlen - 4, dexlendata,0,4 );
        int apklen = (new DataInputStream(new ByteArrayInputStream(dexlendata))).readInt();
        //得到apk数据长度

        byte[] newDex = new byte[apklen];
        System.arraycopy(dexdata, dexlen - apklen - 4, newDex, 0, apklen);

        newDex = decrpt(newDex);//进行解密处理


        //写入文件
        File file = new File(apkFileName);
        try
        {
            FileOutputStream out = new FileOutputStream(file);
            out.write(newDex);
            out.close();
        } catch (IOException e)
        {
            throw new RuntimeException(e);
        }

        //可添加so文件处理，将apk中的so文件拿出来，放到/data/data/app包名/lib目录下，由于本实例不需要，这里省略

    }

    private byte[] decrpt(byte[] newDex) {
        return newDex;
    }

    private byte[] readDexFromApk() throws IOException{
        ByteArrayOutputStream dex = new ByteArrayOutputStream();
        ZipInputStream local = new ZipInputStream(new BufferedInputStream(new FileInputStream(getApplicationInfo().sourceDir)));
        while (true)
        {
            ZipEntry zipentry = local.getNextEntry();
            if (zipentry == null)
            {
                local.close();
                break;
            }
            if (zipentry.getName().equals("classes.dex"))
            {
                byte[] b = new byte[1024];
                int i = -1;
                while ((i = local.read(b)) != -1)
                {
                    dex.write(b, 0, i);
                }
            }
            local.closeEntry();
        }
        local.close();
        return dex.toByteArray();
    }
}

下面的代码是实现加载apk运行的实例。

package com.qqq.test.shell;


import android.annotation.SuppressLint;
import android.app.Activity;
import android.content.pm.PackageInfo;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;


import java.io.File;
import java.lang.reflect.Constructor;
import java.lang.reflect.Method;

import dalvik.system.DexClassLoader;

public class GoodActivity extends AppCompatActivity {
    private String mClss;
    private String dexPath;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        this.dexPath = this.getDir("odex", MODE_PRIVATE).getAbsolutePath() + File.separator +"myapp.apk";
        lanuchTargetActivity();
    }


    @SuppressLint("NewApi")
    protected void lanuchTargetActivity()
    {
        PackageInfo packageinfo = getPackageManager().getPackageArchiveInfo(dexPath, 1);
        if ((packageinfo != null)&&(packageinfo.activities.length>0))
        {
            String activityName = packageinfo.activities[0].name;
            mClss = activityName;
            launchTargetActivity(mClss);
        }
    }
    @SuppressLint("NewApi")
    protected void launchTargetActivity(final String className)
    {
        File dexOutputDir = this.getDir("loadedDexDir", 0);
        final String dexOutputPath = dexOutputDir.getAbsolutePath();
        ClassLoader classLoader = ClassLoader.getSystemClassLoader();
        DexClassLoader dexClassLoader = new DexClassLoader(dexPath,dexOutputPath,null,classLoader);
        try
        {
            Class<?> localClass = dexClassLoader.loadClass(className);//实例化activity
            Constructor<?> localConstructor = localClass.getConstructor(new Class[]{Activity.class});
            Object instense = localConstructor.newInstance(new Object[]{this});

            Method onCreate = localClass.getDeclaredMethod("onCreate", new Class[]{Bundle.class});
            onCreate.setAccessible(true);
            Bundle bundle = new Bundle();
            onCreate.invoke(instense, new Object[]{bundle});
        }
        catch (Exception e)
        {
            e.getStackTrace();
        }
    }

}

这里需要替换Application入口，先执行解密代码，然后再正常执行壳APP的正常逻辑，即加载已经解密后的App。

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.qqq.test.shell">
    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:name=".App"
        android:theme="@style/AppTheme">
        <activity android:name=".GoodActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
</manifest>

加壳工程

新建java工程，然后写代码，将壳app(shell.apk)和被加壳app（myapp.apk）放在同一目录下。加壳的流程就是

解压壳APP，读取解压的classes.dex的数据
读取需要加壳的app的数据，并按需加密
将壳的数据和已被加密的数据合并，并在数据结尾用4个字节记录加密数据长度
将合并的新的dex数据进行依次修复file_size、SHA1_signature及checksum数据
把修复好的新dex数据输出，并替换原shell目录下的classes.dex文件
压缩替换classes.dex的文件目录为新的apk
最后对新的apk进行签名、安装、测试

import java.io.*;
import java.security.MessageDigest;
import java.util.zip.Adler32;
import java.util.zip.ZipEntry;
import java.util.zip.ZipFile;
import java.util.Enumeration;
import java.util.zip.ZipOutputStream;
import java.util.zip.ZipInputStream;

public class enCode {
    public static String path = "E:\\testShell\\";
     public static void main(String[] args) {
       try {
        File srcFile = new File(path + "myapp.apk");
        d("需要加密的apk大小",String.valueOf(srcFile.length()));

        File shellFile = new File(path + "shell.apk");
        d("原始壳apk大小",String.valueOf(shellFile.length()));

        File shellDexFile = getZipFile(shellFile, "classes.dex");
        d("原始壳dex大小",String.valueOf(shellDexFile.length()));

        byte[] shellDex = getFilebyte(shellDexFile);
        byte[] enCodedApk = encrpt(getFilebyte(srcFile));


        int enCodedApkLen = enCodedApk.length;
        d("加密后的apk大小",String.valueOf(enCodedApkLen));

        int shellDexLen = shellDex.length;
        d("原始shellDex大小",String.valueOf(shellDexLen));

        int toatalLen = enCodedApkLen + shellDexLen + 4;
        d("合并后shell-encodedApk.dex大小",String.valueOf(toatalLen));

        byte[] newDex = new byte[toatalLen];
        System.arraycopy(shellDex, 0, newDex, 0, shellDexLen);
        System.arraycopy(enCodedApk, 0, newDex, shellDexLen, enCodedApkLen);
        System.arraycopy(intToByte(enCodedApkLen), 0, newDex, toatalLen - 4, 4);

        fixNewdexHeaderSize(newDex);
        d("修复file_size","完成");

        fixSHA1Header(newDex);
        d("修复signature","完成");

        fixNewdexHeqaderChecksum(newDex);
        d("修复checksum","完成");

        File outNewDexFile = new File(path + "shell-encodedApk.dex");
        outNewDexFile.createNewFile();
        FileOutputStream outStream = new FileOutputStream(outNewDexFile);
        outStream.write(newDex);
        outStream.flush();
        outStream.close();
        d("输出","shell-encodedApk.dex");


        File news = new File(path + "shell/classes.dex");
        news.createNewFile();
        FileOutputStream outSteam = new FileOutputStream(news);
        outSteam.write(newDex);
        outSteam.flush();
        outSteam.close();
        d("输出","shell-encodedApk.dex到shell/classes.dex");

        File newApk = new File(path + "myapp-encoded.apk");
        toZip(path + "shell", new FileOutputStream(newApk), true);
        d("输出","myapp-encoded.apk");

        //签名apk
        apksign(path + "myapp-encoded.apk");

      } catch(Exception e)
      {}
    }

    public static void apksign(String filePath) throws Exception
    {
        String cmd = "java -jar " + path +"signApk/signapk.jar "
         + path + "signApk/testkey.x509.pem "
         + path + "signApk/testkey.pk8 "
         + filePath + " "
         + filePath.replace(".apk", "_signed.apk");
        d("签名中", cmd);
        BufferedReader br = null;
        Process process = Runtime.getRuntime().exec(cmd);
        InputStream is = process.getInputStream();
        br = new BufferedReader(new InputStreamReader(is,"utf-8"));
        StringBuffer sb = new StringBuffer();
        sb.append(br.readLine());
        String content;
        while ((content = br.readLine()) != null) {
            content = br.readLine();
            sb.append(content);
        }
        br.close();
        br = null;
        d("签名信息",content);
    }

    //修改dex头 file_size值
    public static byte[] fixNewdexHeaderSize(byte[] data)
    {
        byte[] newLenData = intToByte(data.length);
        d("修复file_size值为",Integer.toHexString(data.length));
        byte[] refs = new byte[4];
        for (int i = 0; i < 4; i++) {//高位低位转换
            refs[i] = newLenData[newLenData.length - 1 - i];
            d("-修复为",Integer.toHexString(newLenData[i]));
        }
        System.arraycopy(refs, 0, data, 32, 4);//修改32-35
        return data;
    }
    public static byte[] fixSHA1Header(byte[] data) throws Exception
    {
        MessageDigest md = MessageDigest.getInstance("SHA-1");
        md.update(data, 32, data.length - 32);
        byte[] newData = md.digest();
        System.arraycopy(newData, 0, data, 12, 20);
        //输出sha-1值，可有可无
        String hexstr = "";
        for (int i = 0; i < newData.length; i++) {
            hexstr += Integer.toString((newData[i] & 0xff) + 0x100, 16).substring(1);
        }
        d("-sha1 signature修改为",hexstr);
        return data;
    }
    public static byte[] fixNewdexHeqaderChecksum(byte[] data)
    {
        Adler32 adler = new Adler32();
        adler.update(data,12,data.length-12);//从12到文件末计算
        long value = adler.getValue();
        byte[] newData = longToByte(value);
        d("修复checkSum值为",Long.toHexString(value));
        byte[] refs = new byte[4];
        for (int i = 0; i < 4; i++) {//高位低位转换
            refs[i] = newData[newData.length - 1 - i];//取低4位
            d("-修复为",Long.toHexString(newData[4 + i]));
        }
        System.arraycopy(refs, 0, data, 8, 4);//修改8-13
        return data;
    }
    public static byte[] longToByte(long num) {
        byte[] b = new byte[8];
        for (int i = 7; i > 0; i--)
        {
            b[i] = (byte)(num%256);
            num >>= 8;
        }
        return b;
    }
    public static byte[] intToByte(int num)
    {
        byte[] b = new byte[4];
        for (int i = 3; i > 0; i--)
        {
            b[i] = (byte)(num%256);
            num >>= 8;
        }
        return b;
    }

    public static byte[] encrpt(byte[] data)
    {
        return data;
    }

    public static byte[] getFilebyte(File file) throws IOException
    {
        byte[] buffer = new byte[1024];
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        FileInputStream fis = new FileInputStream(file);
        while(true)
        {
            int readCount = -1;
            if ((readCount = fis.read(buffer)) != -1)
            {
                byteArrayOutputStream.write(buffer, 0, readCount);
            }else
            {
                break;
            }
        }
        fis.close();
        return byteArrayOutputStream.toByteArray();
    }

    public static File getZipFile(File file,String zipIn) throws Exception
    {
        ZipFile zip = new ZipFile(file);
        Enumeration<? extends ZipEntry> files = zip.entries();
        ZipEntry entry = null;
        File outFile = null;
        while (files.hasMoreElements())
        {
            entry = files.nextElement();
            d("-解压中",entry.getName());

            String outPath = (path +"shell/"+ entry.getName()).replace("\\*", "/");
            File outfile = new File(outPath.substring(0,outPath.lastIndexOf("/")));
            if (!outfile.exists())
            {
                outfile.mkdirs();
            }

            InputStream in = zip.getInputStream(entry);
            OutputStream out = new FileOutputStream(outPath);
            byte[] buf1 = new byte[1024];
            int len;
            while((len=in.read(buf1))>0)
            {
                out.write(buf1,0,len);
            }
            in.close();
            out.close();

            if (entry.getName().equals(zipIn))
            {
                outFile = new File(outPath);
            }
        }
        zip.close();
        return outFile;
    }
    /**
         * @param srcDir 压缩文件夹路径
         * @param out    压缩文件输出流
         * @param KeepDirStructure  是否保留原来的目录结构,true:保留目录结构;
         *                          false:所有文件跑到压缩包根目录下(注意：不保留目录结构可能会出现同名文件,会压缩失败)
         * @throws RuntimeException 压缩失败会抛出运行时异常
         */
    public static void toZip(String srcDir, OutputStream out, boolean KeepDirStructure)
        throws RuntimeException
    {
        long start = System.currentTimeMillis();
        ZipOutputStream zos = null;
        try {
            zos = new ZipOutputStream(out);
            File sourceFile = new File(srcDir);
            compress(sourceFile, zos, sourceFile.getName(), KeepDirStructure);
            long end = System.currentTimeMillis();
            d("压缩用时",String.valueOf(end - start) + "ms");
        } catch (Exception e) {
            throw new RuntimeException("zip error from ZipUtils", e);
        } finally {
            if (zos != null) {
                try {
                    zos.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }
    }

      /**
         * 递归压缩方法
         * @param sourceFile 源文件
         * @param zos        zip输出流
         * @param name       压缩后的名称
         * @param KeepDirStructure  是否保留原来的目录结构,true:保留目录结构;
         *                          false:所有文件跑到压缩包根目录下(注意：不保留目录结构可能会出现同名文件,会压缩失败)
         * @throws Exception
         */
    private static void compress(File sourceFile, ZipOutputStream zos, String name,
        boolean KeepDirStructure) throws Exception
        {
            byte[] buf = new byte[2 * 1024];
            d("-压缩中",name);
            if (sourceFile.isFile()) {
                // 向zip输出流中添加一个zip实体，构造器中name为zip实体的文件的名字
                zos.putNextEntry(new ZipEntry(name.substring(6)));
                // copy文件到zip输出流中
                int len;
                FileInputStream in = new FileInputStream(sourceFile);
                while ((len = in.read(buf)) != -1) {
                    zos.write(buf, 0, len);
                }
                // Complete the entry
                zos.closeEntry();
                in.close();
            } else {
                File[] listFiles = sourceFile.listFiles();
                if ((listFiles == null || listFiles.length == 0) && !name.equals("shell")) {
                    // 需要保留原来的文件结构时,需要对空文件夹进行处理
                    if (KeepDirStructure) {
                        // 空文件夹的处理
                        zos.putNextEntry(new ZipEntry(name + "/"));
                        // 没有文件，不需要文件的copy
                        zos.closeEntry();

                    }
                } else {
                    for (File file : listFiles) {
                        // 判断是否需要保留原来的文件结构
                        if (KeepDirStructure) {
                            // 注意：file.getName()前面需要带上父文件夹的名字加一斜杠,
                            // 不然最后压缩包中就不能保留原来的文件结构,即：所有文件都跑到压缩包根目录下了
                            compress(file, zos, name + "/" + file.getName(), KeepDirStructure);
                        } else {
                            compress(file, zos, file.getName(), KeepDirStructure);
                        }
                    }
                }
            }
        }

    public static void d(String str,String str1)
    {
        long time = System.currentTimeMillis();
        System.out.println("["+time+"] "+str+":"+str1);
    }
}

运行效果

探究

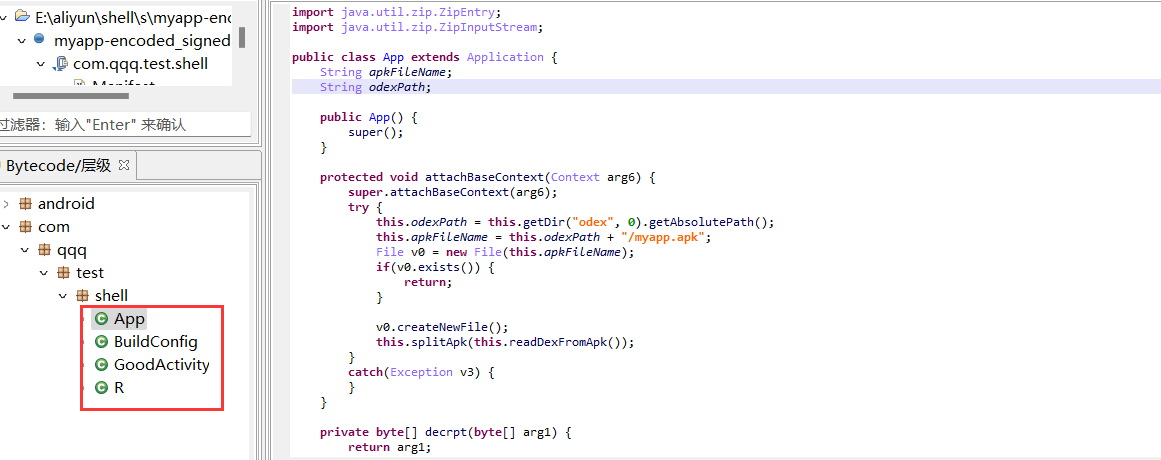

加壳，就是为了避免反编译直接被读取apk的正常代码，这里实现的加壳基本上实现了这样一个目的，完全看不见被合并的源apk逻辑。在JEB中的分析结果如下：

但是这样加壳是有缺陷的，而且挺致命的。因为这里的加壳后运行会进行解密，并且将解密的apk结果放在了/data/data/私有目录下，就会导致已经root了的设备能够直接读取。这样的加载数据形式一般被称为落地加载，而不是在内存中加载。这样，即使落地加载一秒钟，也有可能被读取源apk数据。懂了这点，所以以后研究研究不落地加载的实例吧。

其次，虽然直接反编译不能直接看见被加密的代码逻辑，但是可以看到壳app的运行逻辑，也并不安全，最好将壳 apk的代码逻辑采用native的方式实现，这种方法也是相对安全的，但是至少能增加逆向者的时间花费。
